C537 C127 1
Computer and Electric Room Switch between A/C Controller
Computer Room Controller
Description
Computer Room Controller
• Control and monitor computer rooms.
• Master and stand-by unit control.
• One or two stage operation.
• Indicates alarms to remote site.
• Switches between the units every 24 Hours.
• Fixed control temperatures set-points.
Optional:
Dry Contact outputs to the air condition controllers.
• Line voltage outputs to the air condition controllers.
• 24 Volts outputs to the air condition controllers.
• Faults input from the air condition units to the controller.
Wall mount.
DIRECT LINE VOLTAGE 230 VAC.
Download Spec Download Catalog
Related products
-
C580
Output + Input X8 controller Modbus communication Input and Output Controller. 8 channels output and input with MODBUS communication. Analog (0-10V) or switches input. Testing and Overriding switch at front panel plus LED’s indicators. DIRECT LINE VOLTAGE 230 VAC Description Input and Output Controller. DIN Rail mount. Three Types: • C580-16R = 8 relays outputs 16 Amps. (Dry Contacts) • C580-16D = 8 relays outputs 16 Amps and 8 x 0-10 VDC analog Inputs. • C580-16I = 8 relays outputs 16 Amps and 8 x switches (dry contacts). Operate direct from 230 VAC. LED’s indicators for relays operation. LED’s indicator for Tx , Rx Communication operation. Removable Screw terminal connectors. Mounts inside electrical cabinet on standard DIN rails. Download Catalog -

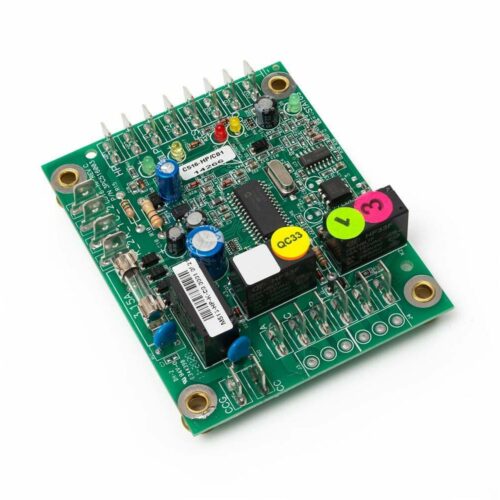

C526 – HP
