Controllers
-
C516-HP
W.S.H.P Lock out board C516-HP - Water Source Heat Pump and Heat – Pump Lock-out controller. Description The C516 Heat pump controller is a 24 volt controller that controls the compressor contactor and has safety inputs for High Pressure, Low Pressure, Condensate and Low Temperature. It can be used to replace an obsolete CCM controller used by ClimateMaster and other manufactures. Wiring diagrams on how to install this in old ClimateMaster units are show below as a PDF and can be down loaded Three relays controls the compressor, RV and Fault indication. Anti-Short Cycle protection and 5 inputs for monitoring fault sensors. 5 Diagnostics LED’s. (HPS, LPS, FR, Condensation and Under / Over voltage). Intelligent reset logic. Test mode. Cassis mount. Operate on 24 VAC. Download PDF Connections Diagram Download Catalog -
C526 – HP

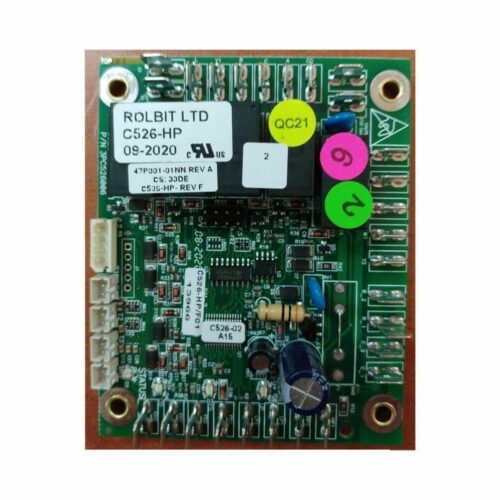

W.S.H.P. Lock-out board with Sensors and Communication Water Source Heat Pump and Heat – Pump Lock-out controller. Description Solid State lockout Circuit (HPS, LPS, FR, Condensation and Under / Over voltage). Five relays controls the: Compressor, RV, Water Valve, FRZ and Fault indication. 5 Minutes Anti-Short Cycle protection and 5 inputs for monitoring fault sensors plus 4 temperature sensors (NTC type). Random start. Second stage of Aux electrical heater. 5 Diagnostics LED’s. Intelligent reset logic. Test mode. Optional - Communication to BMS. Cassis mount. Operate on 24 VAC. Download PDF -
CMC – C512

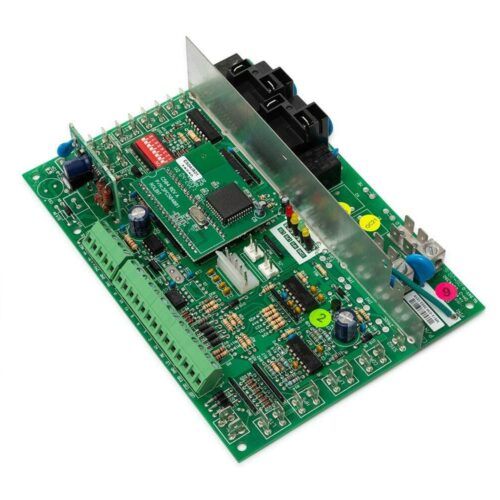

W.S.H.P Controller ClimateMaster CMC Controller Climate Master original board Replacement Control Boards for old ClimateMaster Heat Pumps. Water Source Heat Pump controller. CMC Replacement Controllers PN. 69626512 and 69626300 ClimateMaster used these controllers in their heat pumps from 1993 to 1998. The product shown is the latest version of this controller with a more robust power supply and microprocessor. This board is a 45 minute change out. ClimateMaster only sells a replacement kit that takes 3-4 hours if you get it right. The control board is brand new not rebuilt or refurbished and has 1 year unconditional parts warranty. The part number of this board is 69626512A and replaces these ClimateMaster kits. Download original ClimateMaster IOM located below. Description Solid State lockout Circuit with Fault indication (HPS, LPS, LTS, Condensation and Under / Over voltage). USD, CSD and ESD inputs. Three relays controls the: Compressor, Fan and RV. 5 Minutes Anti-Short Cycle protection and 5 inputs for monitoring fault sensors. Random start. 4 Diagnostics LED’s. Intelligent reset logic. Test mode. Communication with the ET thermostat. Cassis mount. Operate on 24 VAC. Download PDF Installation, Operating & Maintenance Instructions -
C537 C127 1

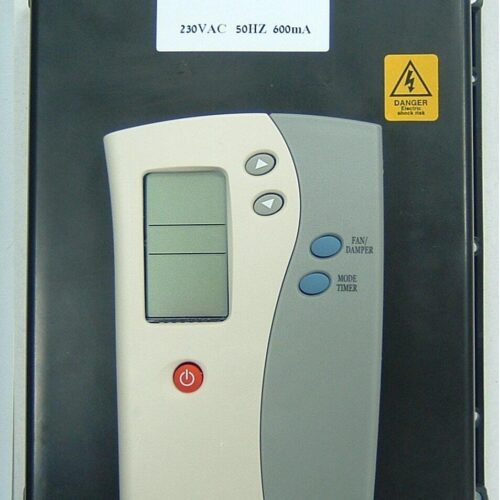

Computer and Electric Room Switch between A/C Controller Computer Room Controller Description Computer Room Controller • Control and monitor computer rooms. • Master and stand-by unit control. • One or two stage operation. • Indicates alarms to remote site. • Switches between the units every 24 Hours. • Fixed control temperatures set-points. Optional: Dry Contact outputs to the air condition controllers. • Line voltage outputs to the air condition controllers. • 24 Volts outputs to the air condition controllers. • Faults input from the air condition units to the controller. Wall mount. DIRECT LINE VOLTAGE 230 VAC. Operating Manual Download PDF Download Spec Download Catalog -
C515
Water Source Heat-Pump Controller, McQuay - Mark IV replacement Replacement for the McQuay Mark IV controllers Description The C515 is a generic replacement for the McQuay MarkIV controllers P/N 056792401K, 60638801 and 056792402K. It wires exactly the same and is dimensionally identical to the original board. It has two significant advantages, one lower price and the fact that it can activate both a 24 VDC reversing solenoid and a 24 VAC reversing solenoid selectable by a jumper. Solid State lockout Circuit with Fault indication (HPS, LPS, LTS, Condensation and Under / Over voltage). USD, CSD and ESD inputs. Three relays controls the: Compressor, Fan and RV. 5 Minutes Anti-Short Cycle protection and 5 inputs for monitoring fault sensors. Random start. 4 Diagnostics LED’s. Intelligent reset logic. Test mode. Communication with the ET thermostat. Cassis mount. Operate on 24 VAC. Download PDF -
C129
Air-Conditioner I/R operator

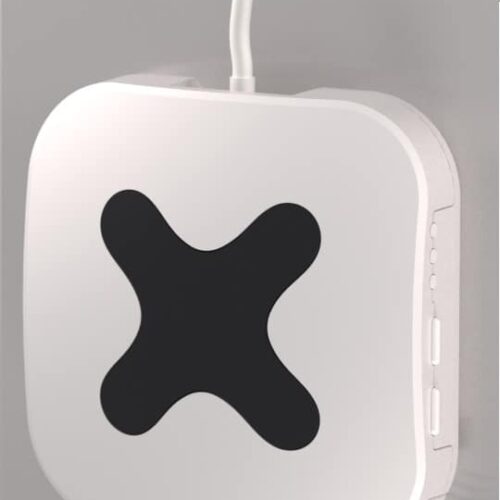

C129 – I.o.T. Zone control with Wireless Thermostats (RF). Description The C129 allows controlling most of the Split, Mini split and VRF Air condition units that has Infra Red control by handheld remote controllers. The C129 gets commands from the Internet via the local WiFi network and transmit I/R signals to the Air condition. Third Party App. Controls the device and allows full control on the Air condition operation. Controls over: • Turn ON and Off, • Cool – Heat, Fan Only • Temperature Set-Point. Compatible with most Air Conditions in the market. Building Automation Companies are welcome to implement this device in to their Application. Operate from Micro USB 5 Volts adaptor that plugs in to 120 / 230 VAC outlet. -
C539FR
Fan-Coil Controller Modbus + BACnet Communication Download Catalog -
C580
Output + Input X8 controller Modbus communication Input and Output Controller. 8 channels output and input with MODBUS communication. Analog (0-10V) or switches input. Testing and Overriding switch at front panel plus LED’s indicators. DIRECT LINE VOLTAGE 230 VAC Description Input and Output Controller. DIN Rail mount. Three Types: • C580-16R = 8 relays outputs 16 Amps. (Dry Contacts) • C580-16D = 8 relays outputs 16 Amps and 8 x 0-10 VDC analog Inputs. • C580-16I = 8 relays outputs 16 Amps and 8 x switches (dry contacts). Operate direct from 230 VAC. LED’s indicators for relays operation. LED’s indicator for Tx , Rx Communication operation. Removable Screw terminal connectors. Mounts inside electrical cabinet on standard DIN rails. Download Catalog -
C138SE

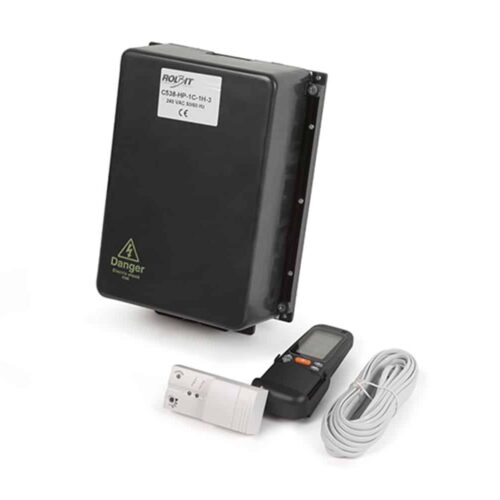

Heat-Punp Controller HEAT PUMP (split unit) and Fan Coil Controller Handheld Remote control with I/R receiver. DIRECT LINE VOLTAGE 230 VACDesciption
- C138SE fan coil and heat pump Controller
- C138SE-1-1 Operates direct from 230 Volts AC — 1 Phase.
- Operates by Infra Red remote control terminal or wall thermostat.
- Diagnostic indication.
- Defrost and deice logics.
- Anti – short cycle timer.
- Delay for Indoor fan operation in Heat mode.
- Delays between stage operations.
- Random start delay.
- High Head pressure protection.
- Minimum compressor run time.
- RV delay.
- USD = Unit Shut Down input
- With random start delay.
- Diagnostic indications.
- I-Feel feature.
- TEST mode.
